ODM Ceiling Speaker 100V/70V 5 Inch Coaxial Speaker With Rotatable Eyeball Tweeter

Place of Origin : Guangdong, China

Model Number : CL-345B

MOQ : 100

warranty : 3years

dimension : 203*150

power source : Other

output power : 20/10/5/2.5/8ohm

Shell Material : Iron

the body material : Metal

Radio function : NO

Operating Voltage : 100V, 70V

Impedance : 8ohm

Frequency response : 100-20KHz

Magnet Material : Ferrite, Neodymium

Contact Now

CL-345B High Quality Iron Ceiling Speaker 100V/70V 5 Inch Coaxial Speaker with Rotatable Eyeball Tweeter

CL-345B OEM ODM High Quality Iron Ceiling Speaker 100V/70V 5 Inch Coaxial Speaker with Rotatable Eyeball Tweeter

Product Description

The CL-345B, CL-346B, and CL-348B series are professional ceiling speakers featuring coaxial speaker units in 5", 6", and 8" sizes. These models include built-in 100V/70V/8ohm transformers that minimize line losses over long distances and enable easy parallel connection of multiple speakers.

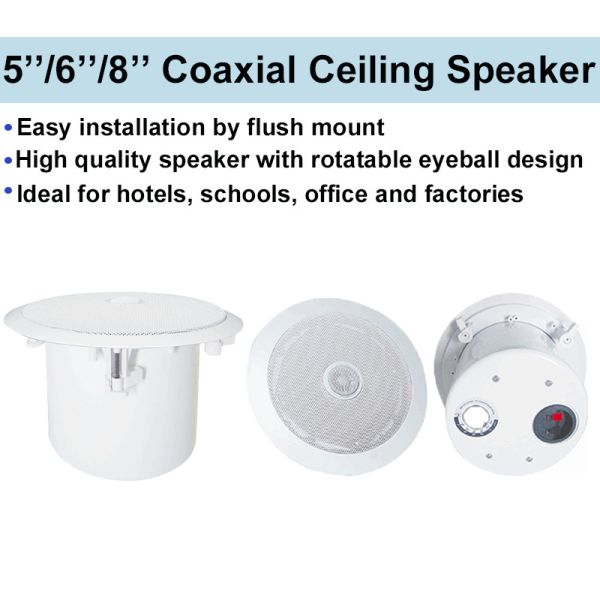

Key Features

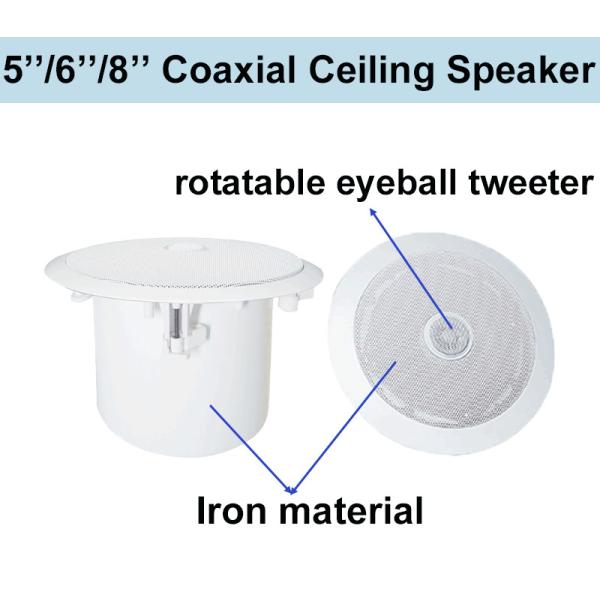

Rotatable eyeball tweeter design allows precise sound direction adjustment
Durable construction with metal grille, ABS baffle, and metal back cover
Available in white finish for discreet ceiling integration
Simple flush mount installation for secure ceiling mounting
Ideal for background music and paging systems in commercial spaces
Suitable for hotels, schools, offices, and industrial facilities

Technical Specifications

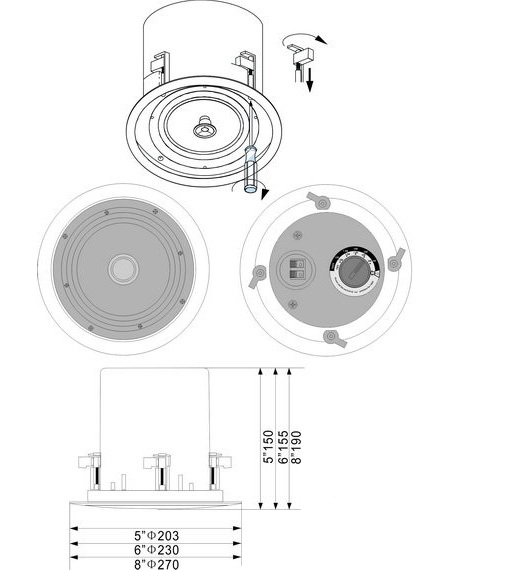

Model	Speaker Size	Power	Voltage	Sensitivity	Frequency Response	Dimension (mm)	Material	Mounting Hole
CL-345B	5" Coaxial Speaker	20/10/5/2.5/8ohm	100V/70V	88DB	100-20KHz	203*150	Iron	170
CL-346B	6" Coaxial Speaker	30/15/7.5/3.8W/8ohm	100V/70V	89DB	100-20KHz	230*155	Iron	200
CL-348B	8" Coaxial Speaker	40/20/10/5W/8ohm	100V/70V	90DB	90-20KHz	270*190	Iron	240

ODM Ceiling Speaker 100V/70V 5 Inch Coaxial Speaker With Rotatable Eyeball Tweeter
