6 Inch Coaxial Speaker 30W Commercial Ceiling Speaker OEM ODM Loudspeaker

warranty : 3years

dimension : 230*90

power source : Other

output power : 30W

Shell Material : ABS

Radio function : NO

Operating Voltage : 100V

Frequency response : 90-20KHz

Magnet Material : Ferrite, Neodymium

Place of Origin : Guangdong, China

Model Number : CL-306V

MOQ : 100

Contact Now

6 Inch Durable Coaxial Speaker 30W Commercial Ceiling Speaker OEM Speaker

CL-306V 6 Inch Durable Coaxial Speaker 30W Commercial Ceiling Speaker OEM ODM Loudspeaker

Product Description

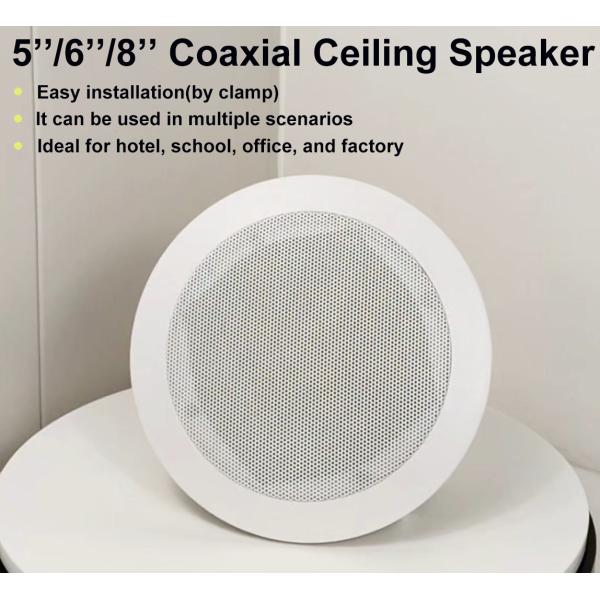

CL-306V Ceiling Speaker: Excellence in Audio for Commercial Spaces

Features

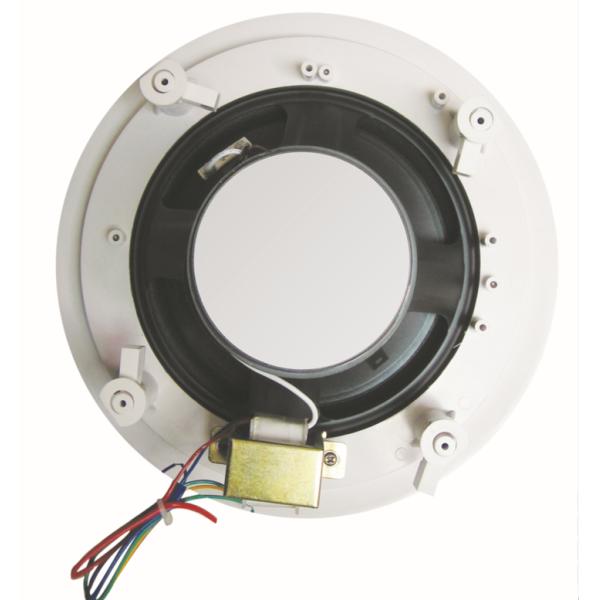

Design & Construction

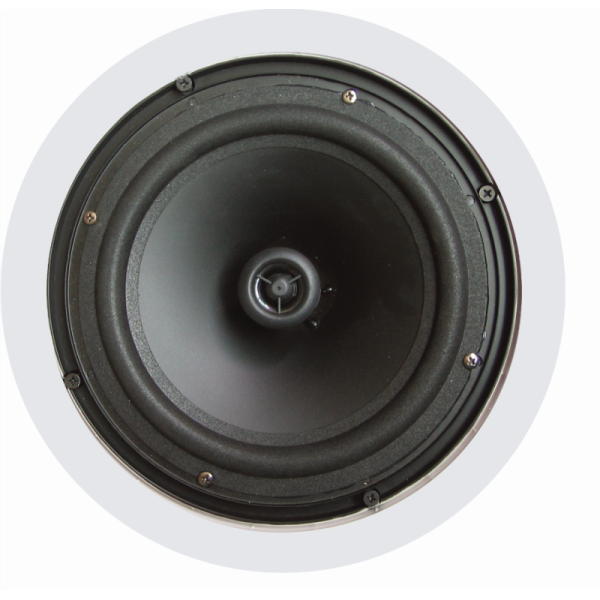

6" coaxial speaker unit for commercial applications
Durable white metal grille with ABS baffle construction
Lightweight yet robust ABS material for long-lasting performance
Discreet design blends seamlessly into various ceiling types

Acoustic Performance

30W power rating with 100V operation
88dB sensitivity for clear, audible sound
Wide frequency response (90Hz-20KHz) for full-range audio
Ideal for both background music and paging applications

Installation & Dimensions

Clamp-based mechanism for easy, secure ceiling mounting

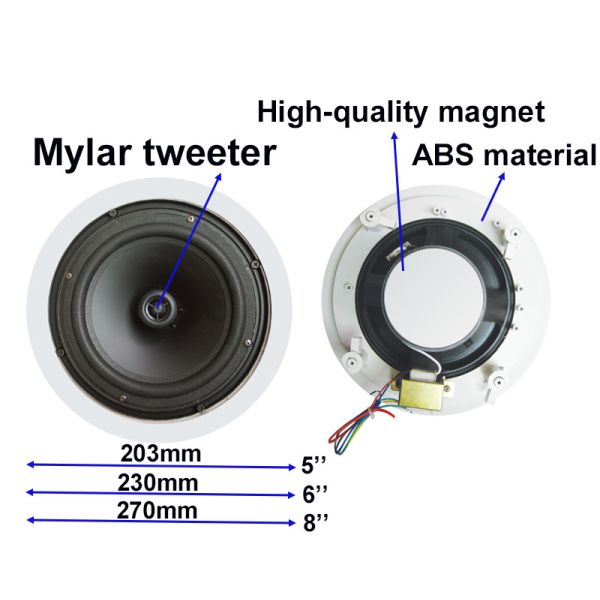

Compact dimensions: 230×90mm (mounting hole size: 200mm)
Lightweight at 1.6kg for easy handling during installation
Sturdy construction ensures stable mounting

Application Suitability

Perfect for commercial environments including hotels, schools, offices, and factories where reliable audio for background music and paging is required.

Technical Specifications

Model	Speaker Size	Power	Voltage	Sensitivity	Frequency Response	Dimension(mm)	Material	Mounting Hole
CL-305V	5" Coaxial Speaker	20W	100V	88DB	100-20KHz	203×80	ABS	170
CL-306V	6" Coaxial Speaker	30W	100V	88DB	90-20KHz	230×90	ABS	200
CL-308V	8" Coaxial Speaker	40W	100V	88DB	50-20KHz	270×105	ABS	240
