OEM ODM Ceiling Speaker 30W Coaxial Loudspeaker ABS Good Sound

warranty : 3years

dimension : 245*150

power source : Other

output power : 30W

Shell Material : ABS

the body material : plastic

Radio function : NO

Special Feature : Durable

Operating Voltage : 8ohm

Impedance : 8ohm

Frequency response : 80-20KHz

Magnet Material : Ferrite, Neodymium

Place of Origin : Guangdong, China

Model Number : CL-305C

MOQ : 100

Contact Now

ABS Good Sound Ceiling Speaker 30W Coaxial Loudspeaker for Office, Bars, Coffee Shops

CL-305C ABS Good Sound OEM ODM Ceiling Speaker 30W High Quality Coaxial Loudspeaker

CL-305C Coaxial Ceiling Speaker: Immersive Sound for Commercial Spaces

Key Features

5-inch coaxial ceiling speaker designed for commercial environments

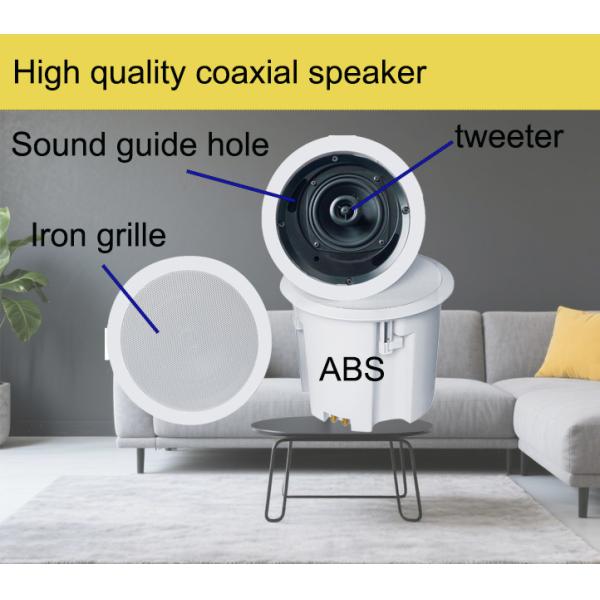

Durable construction with metal grille and ABS components
30W power output with 8ohm voltage
89DB sensitivity for clear, robust sound
80-20KHZ frequency range for wide audio spectrum
Phase-reflect design enhances stereo sound effect

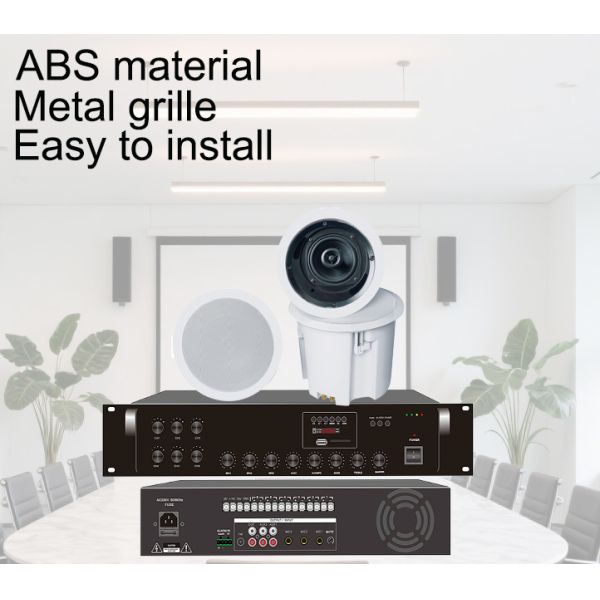

Easy flush-mount ceiling installation

Design & Build

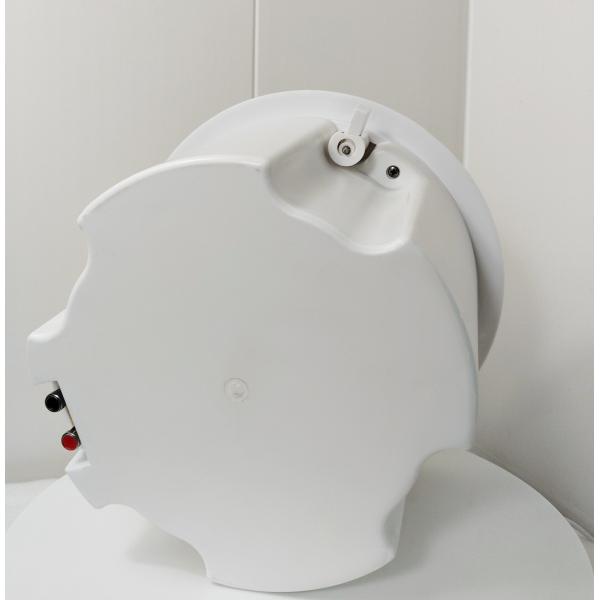

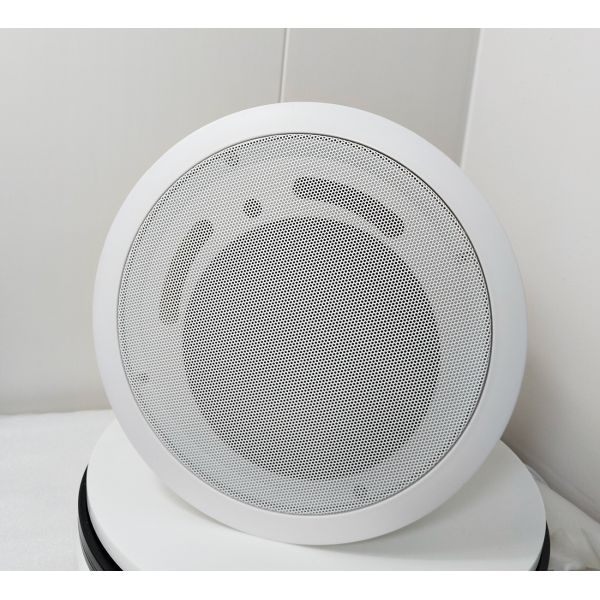

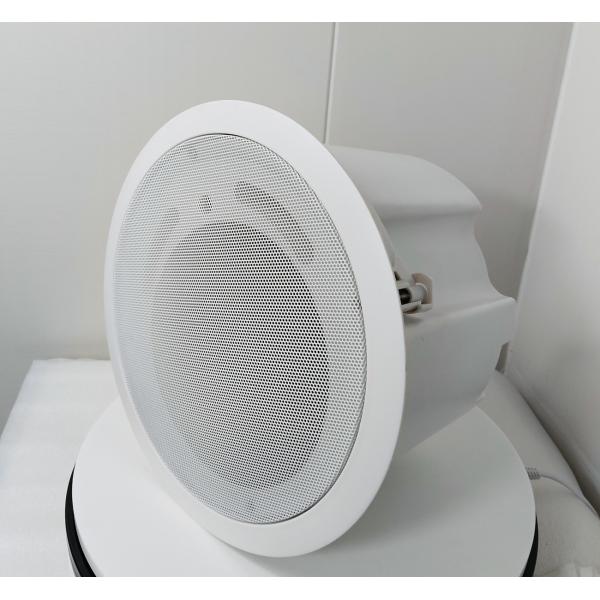

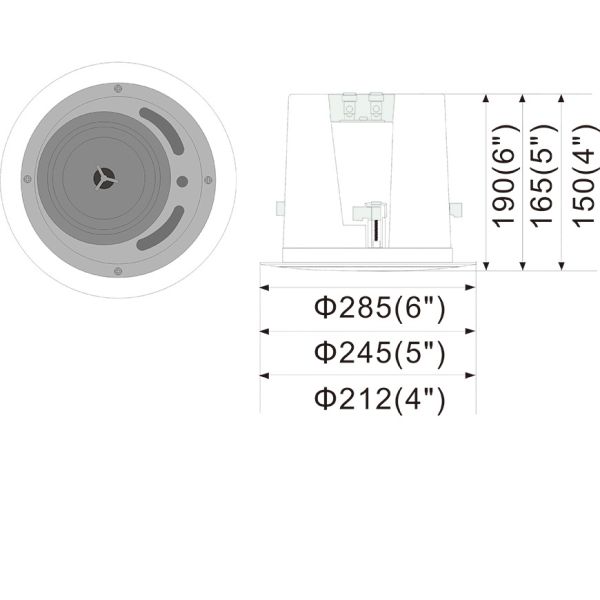

The CL-305C features a metal grille, ABS baffle, and ABS back cover in a clean white finish, offering both durability and a sleek aesthetic. With dimensions of 245*150 mm and weighing 1.6 kg, it supports secure flush-mount ceiling installation while maintaining a tidy appearance.

Acoustic Performance

This speaker delivers 30W power at 8ohm voltage with 89DB sensitivity, producing clear and robust sound. Its 80-20KHZ frequency range enables precise reproduction across the audio spectrum. The phase-reflect design significantly enhances stereo sound, creating depth, presence, and spatiality for an immersive listening experience.

Application Suitability

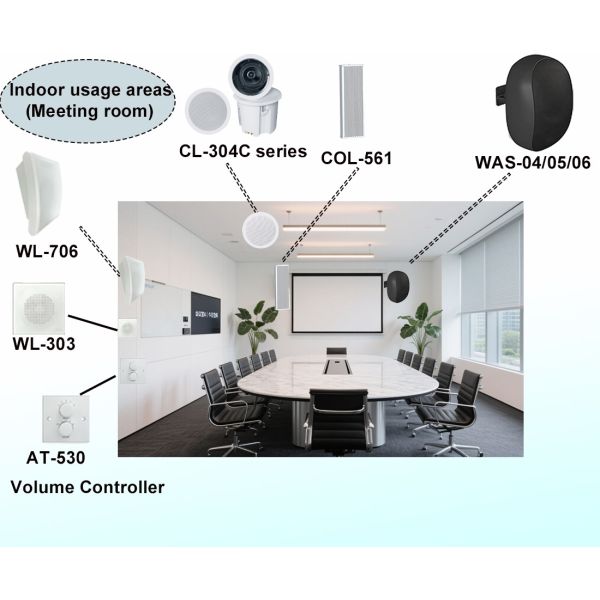

Ideal for commercial applications including hotels, offices, coffee shops, and bars. Perfect for setting ambiance in public areas, providing background music in workspaces, or enhancing customer experience in hospitality venues.

Technical Specifications

Model	Speaker Size	Power	Voltage	Sensitivity	Frequency Response	Dimension(mm)	Material	Mounting Hole
CL-304C	4" Coaxial Speaker	20W	8ohm	88DB	90-20KHz	220*165	ABS	180
CL-305C	5" Coaxial Speaker	30W	8ohm	89DB	80-20KHz	245*150	ABS	210
CL-306C	8" Coaxial Speaker	40W	8ohm	90DB	70-20KHz	285*190	ABS	250
CL-304CS	4" Coaxial Speaker	20/10/5/2.5W/8ohm	100V/70V	88DB	90-20KHz	220*165	ABS	180
CL-305CS	5" Coaxial Speaker	30/15/7.5/3.8W/8ohm	100V/70V	89DB	80-20KHz	245*150	ABS	210
CL-306CS	8" Coaxial Speaker	30/15/7.5/3.8W/8ohm	100V/70V	90DB	70-20KHz	285*190	ABS	250
