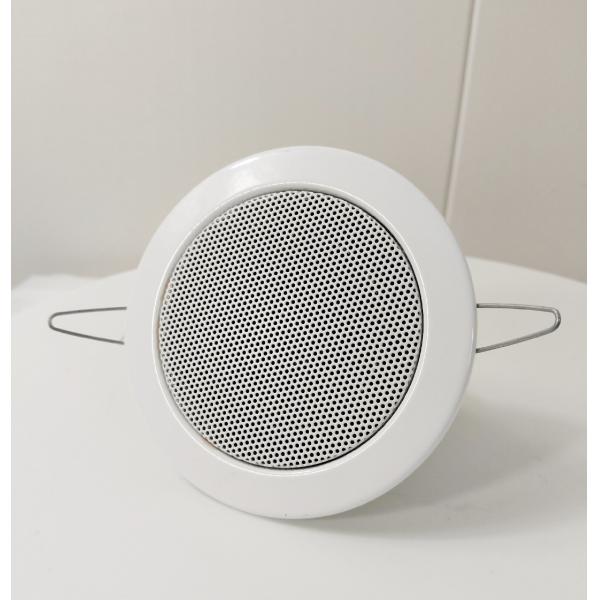

6w 4-inch Ceiling Speaker 100V Full Range Speaker with Back Cover Spring Clamp Easy Installation

Place of Origin : Guangdong, China

Model Number : CL-504B

MOQ : 300

Certification : CE

Supply Ability : 5000+

Delivery Time : 30

Watt : 6w

Weight(kgs) : 0.85

dimension : 135*113mm

Material : Iron

the body material : Metal

Frequency response : 100-20KHZ

Mounting Hole : 112

warranty : 1 year

Application : Hotel, restaurant

Contact Now

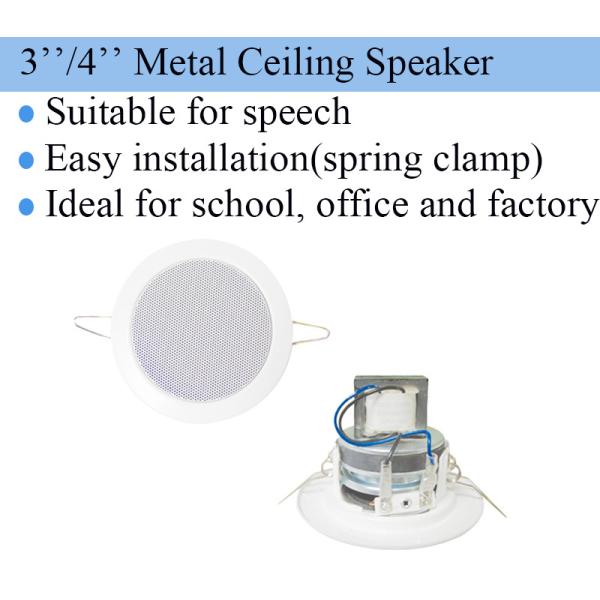

Cl-504B Iron Sound Elegant Design for Office 4 Inch Ceiling Speaker 6W Speaker

The CL-504B is a high-performance passive ceiling speaker engineered for seamless audio integration in commercial and residential spaces. Built with a robust iron enclosure and a 4-inch high-fidelity driver, it delivers crisp, balanced sound coverage for background music, public address, and paging applications.

With a 6W power handling capacity and 100V line input, this speaker is optimized for multi-zone audio systems, ensuring consistent volume levels across large environments like retail stores, offices, restaurants, and hotel lobbies. Its 89dB sensitivity rating guarantees clear audio reproduction even in acoustically challenging spaces, while the frequency response of 100-20kHz ensures rich mids, detailed highs, and smooth tonal balance for both speech and music.

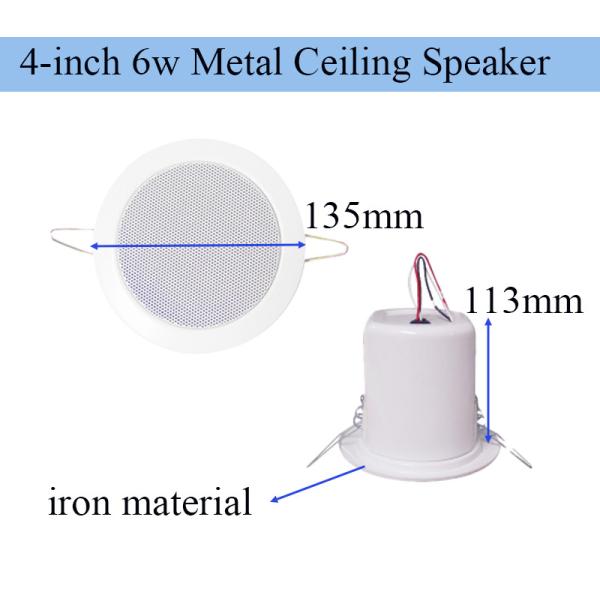

The compact, low-profile design (Φ135×113mm) and lightweight construction (0.85kg) make installation effortless, fitting standard ceiling cutouts with a 112mm mounting hole for secure, flush placement. The durable iron housing protects internal components from dust and moisture, making it suitable for long-term use in high-traffic areas.

Ideal for professional installers and system integrators, the CL-504B combines reliable performance with easy integration. Whether creating immersive background audio experiences or ensuring clear public announcements, this passive ceiling speaker delivers exceptional value and audio clarity for any commercial audio setup.

Technical Specifications

Model	Speaker Size	Power	Voltage	Sensitivity	Frequency Response	Dimension(mm)	Material	Weight(kgs)	Mounting Hole
CL-504	4"	6W	100V	89DB	90-18KHZ	Φ135*80	Iron	0.5	112
CL-504B	4"	6W	100V	89DB	100-20KHz	Φ135*113	Iron	0.85	112
CL-503	3"	6W	100V	87DB	120-20KHz	Φ101*60	Iron	0.4	80

Performance Characteristics

Power Output: 6W with 100V voltage compatibility
Sensitivity: 89DB for efficient signal conversion
Frequency Response: 100-20KHZ for full-range audio reproduction
Compact Design: Φ135-113mm dimensions with 112mm mounting hole
Lightweight: Only 0.85kgs for easy handling
