240W Broadcast Power Amplifier High Power Amplifier For Hotel Office Restaurant PA System

Place of Origin : Guangdong, China

Model Number : PA-240A

MOQ : 100

Certification : CE

Supply Ability : 5000+

Delivery Time : 30

warranty : 1 year

dimension（mm） : 485*400*88

snr : >/=80DB

Watt : 240W

Voltage : 70V/100V

Shape : Rectangle

Frequency response : 80HZ-20KHZ+/-1DB

Contact Now

240W Broadcast Power Amplifier High Power Amplifier For Hotel Office Restaurant PA System

Product Description

This power amplifier boasts outstanding features.

Features:

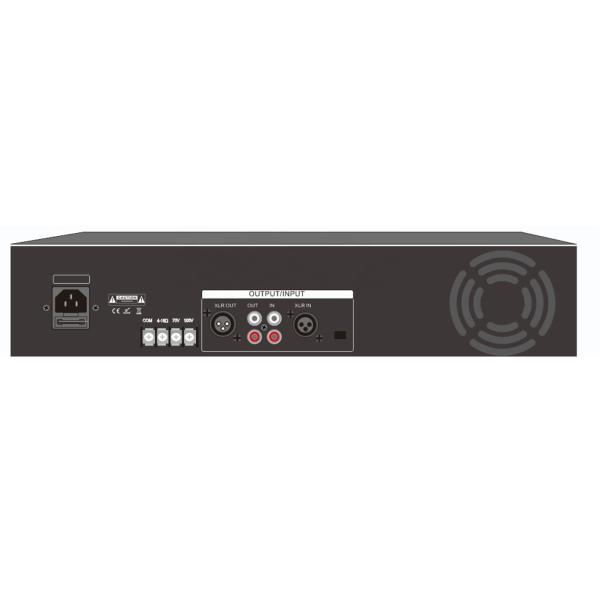

Circuit & Input - Output
It adopts an advanced and efficient power amplification circuit. There are 1 balanced input, 1 unbalanced input, and 1 unbalanced output, enabling flexible connection options for different audio setups.
Power & Volume Control
Equipped with a volume control function. It offers a rated output of 60W to 1500W across various models (PA - 060A to PA - 1500A). For certain models, a 70V/100V constant voltage output with 4 - 16Ω constant impedance output is available, meeting diverse power needs. The input voltage is uniformly AC220V/50Hz.
Protection & Indicators
Safety and monitoring are key. It has protection circuits against DC, overload, over - heating, and short - circuit. Additionally, indicators for signal, peak value, overloading, over - heating, and short - circuit are provided. These indicators give clear warnings when signals are too strong, loads are excessive, temperatures are too high, or short - circuits occur, ensuring the amplifier's reliability and longevity.
Performance Specifications
Frequency response spans 80Hz - 20KHz (±1dB), with total harmonic distortion (THD) ≤0.1% and a signal - to - noise ratio (SNR) ≥80dB. Line output is 0dB. It operates in a temperature range of - 5°C to 80°C and 20% - 80% relative humidity, suitable for various environments. Dimensions are 485x402x88mm, making it compact yet powerful for broadcast applications.

Model

PA-060A

PA-120A

PA-240A

PA-360A

PA-500A

PA-650A

PA-800A

PA-1000A

PA-1500A

Iput Voltage

AC220V/50HZ

Rated Power

Iput Voltage

Sensitivity

Frequency Response

Dimension

Material

Rated Power

60W

120W

240W

360W

500W

650W

800W

1000W

1500W

AUX Sensitivity

0DB

120W

90DB

50-21KHz

186*189*306

ABS

Protection Circut

DC, Overload, AC fuse, Short-circuit

240W

92DB

50-22KHz

222*214*335

ABS

Frequency Response

80HZ-20KHZ+/-1DB

360W

THD

THD</=0.1%

560W

SNR

>/=80DB

650W

Line Output

0DB

1000W

Operating Temperature

-5℃-80℃

Operating Humidity

20℃-80℃ relative humidity

Dimensions

485*400*88
